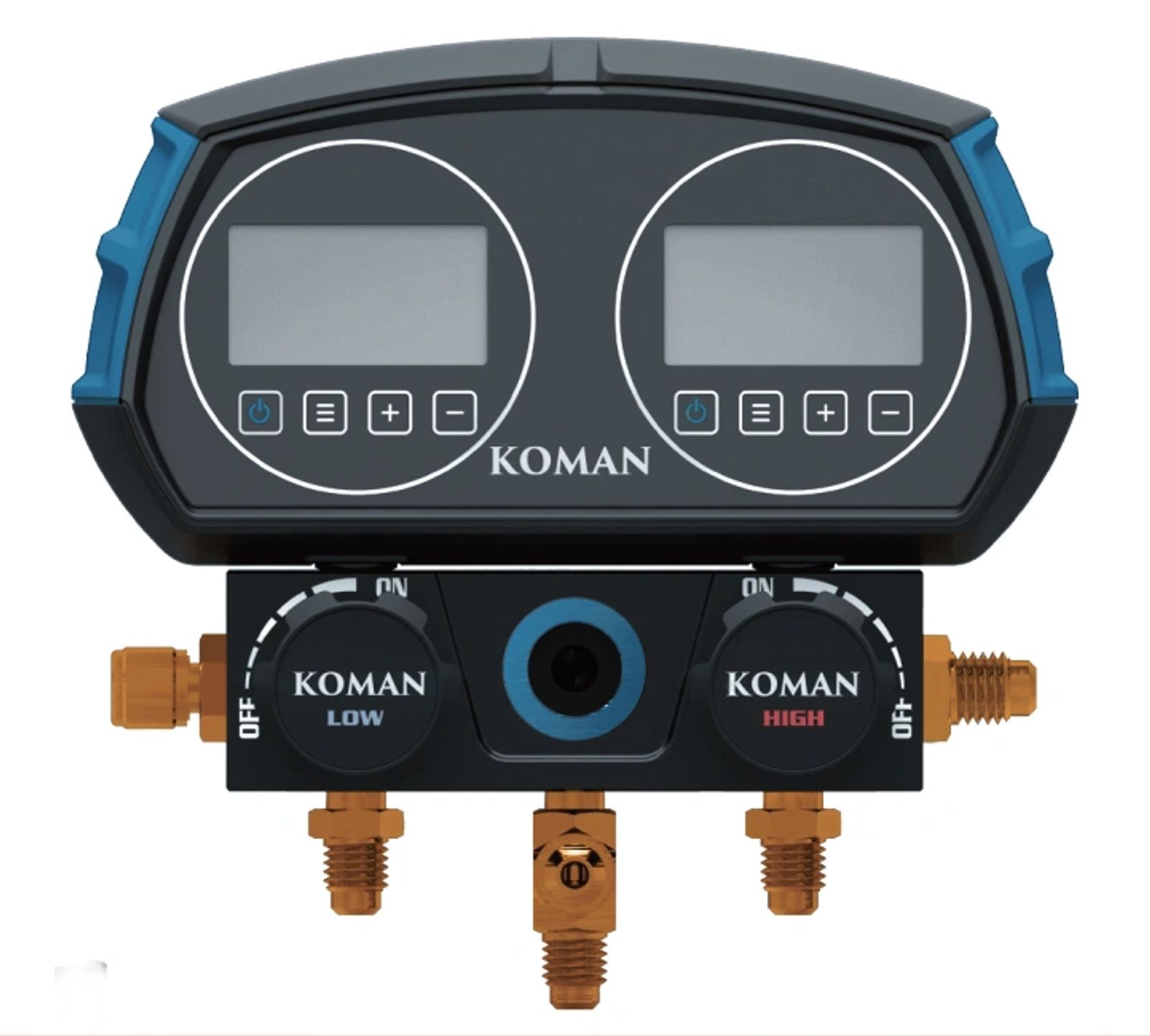

2-VALVE DIGITAL MANIFOLD GAUGE

KM-B268D

• Collapsible Hook
• Manual Ball Valve Design
• Gauge Protector & Shock Proof
• Built-in More Than 90 Kinds Of Refrigerant Gas

KM-B268D Specifications

Item No.	Size Of Hose	Description
KM-B268D	60"(150cm)	3pcs red(1/4"SAE),yellow(1/4"SAE),& blue(1/4"SAE), charging hoses.Working pressure 800PSI,Burst 4000PSI. A sight glass Aluminum testing manifold body. Designed to meet1/4" SAE requirement for refrigerant permutation. More than 90 refrigerants data including R22, R32, R600, R1234yf, R410A, R134A etc in manifold.

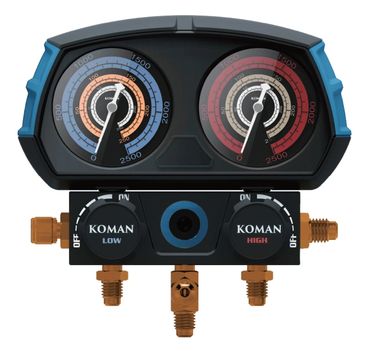

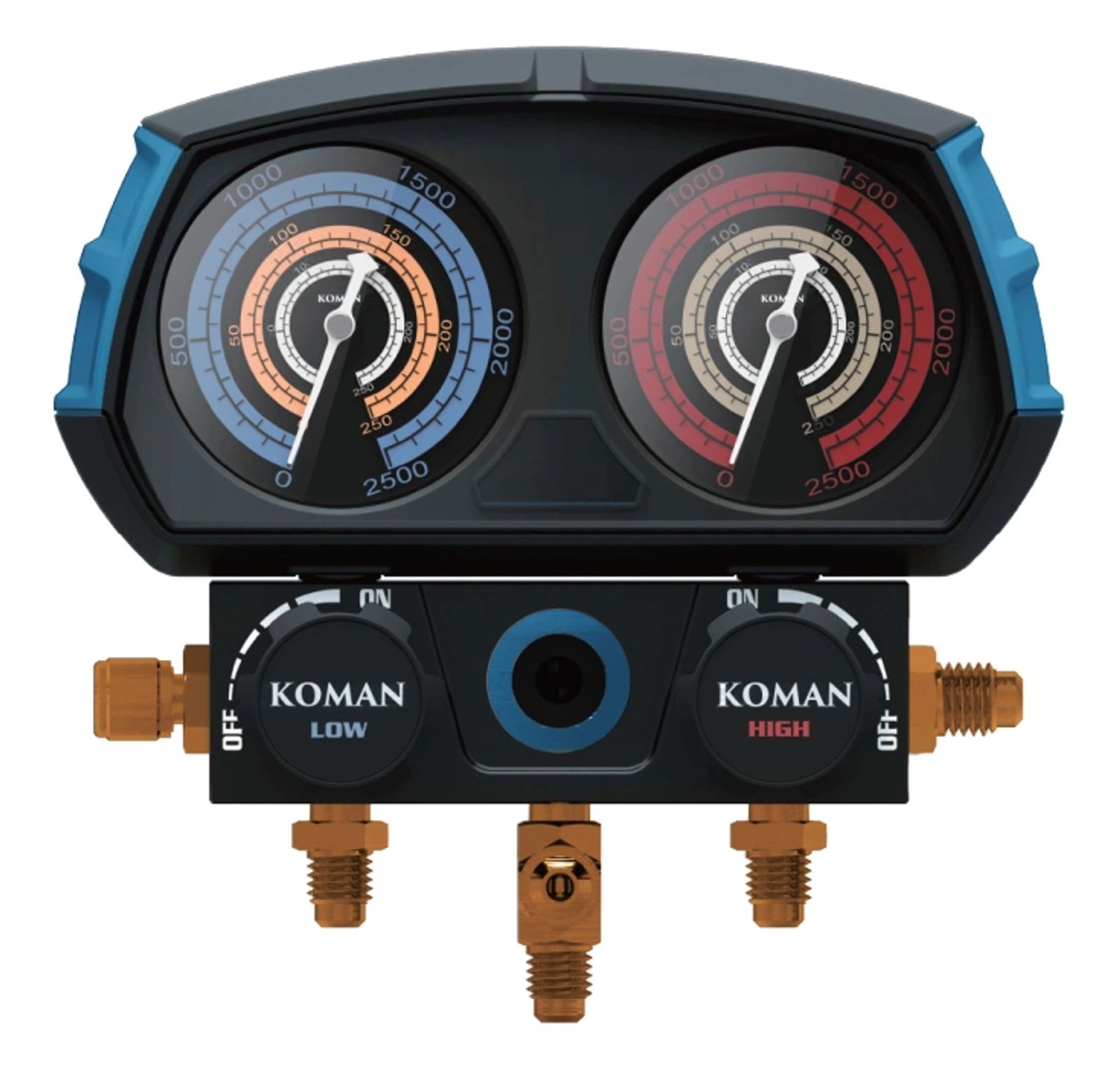

KM-B268M

• Collapsible Hook
• Optional Gauges
• Aluminum Hand Wheel
• Manual Ball Valve Design
• Gauge Protector & Shock Proof

KM-B268M Specifications

Dimeter Of Gauge 68mm	Gauge Scale	Size Of Hose	Description
KM-B268M	R22 R404A R410A R407C	60"(150cm)	3pcs red(1/4"SAE),yellow(1/4"SAE),& blue(1/4"SAE), charging hoses.Working pressure 800Psi Burst 4000Psi. A sight glass aluminum body. Designed to meet 1/4" SAE.

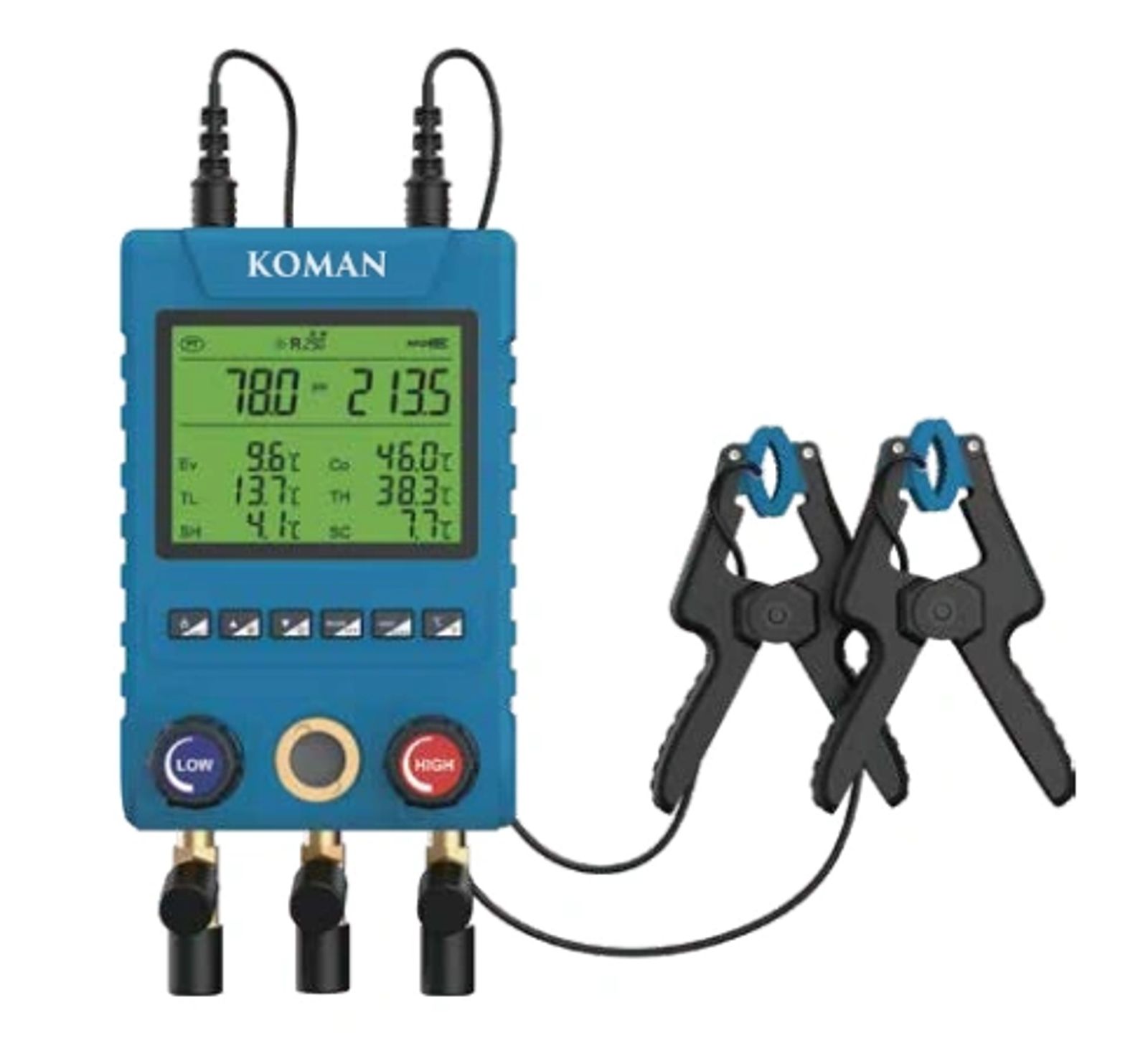

KM-M100G

• Large screen All results are displayed on the screen at the same time
• Withstand 2x range overload capacity (10MPa) No damage to the instrument even if pressure exceeding the measuring range by accident
• A2L Flammable Refrigerant Warning Reminder Flickering fame icon alerts to potential risks
• Commonly used refrigerants Quickly find and set up frequently used refrigerants
• Button Design All functions are operated in a single step

KM-M100G Specifications

Specification	Value
Pressure measurement range	-14.5~800psi
Pressure display resolution	0.5psi
Pressure measurement accuracy	+0.5%FS
Pressure unit	kPa, MPa, psi, inHg, bar, kg/cm²
Temperature measurement range	-50°C~150°C
Temperature display resolution	0.1°C
Temperature measurement accuracy	±0.5°C
Temperature unit	°C, °F
Operating temperature	-10°C~50°C
Storage temperature	-20°C~60°C
