KM-520D
LIGHT WEIGHT FAST RECOVERY

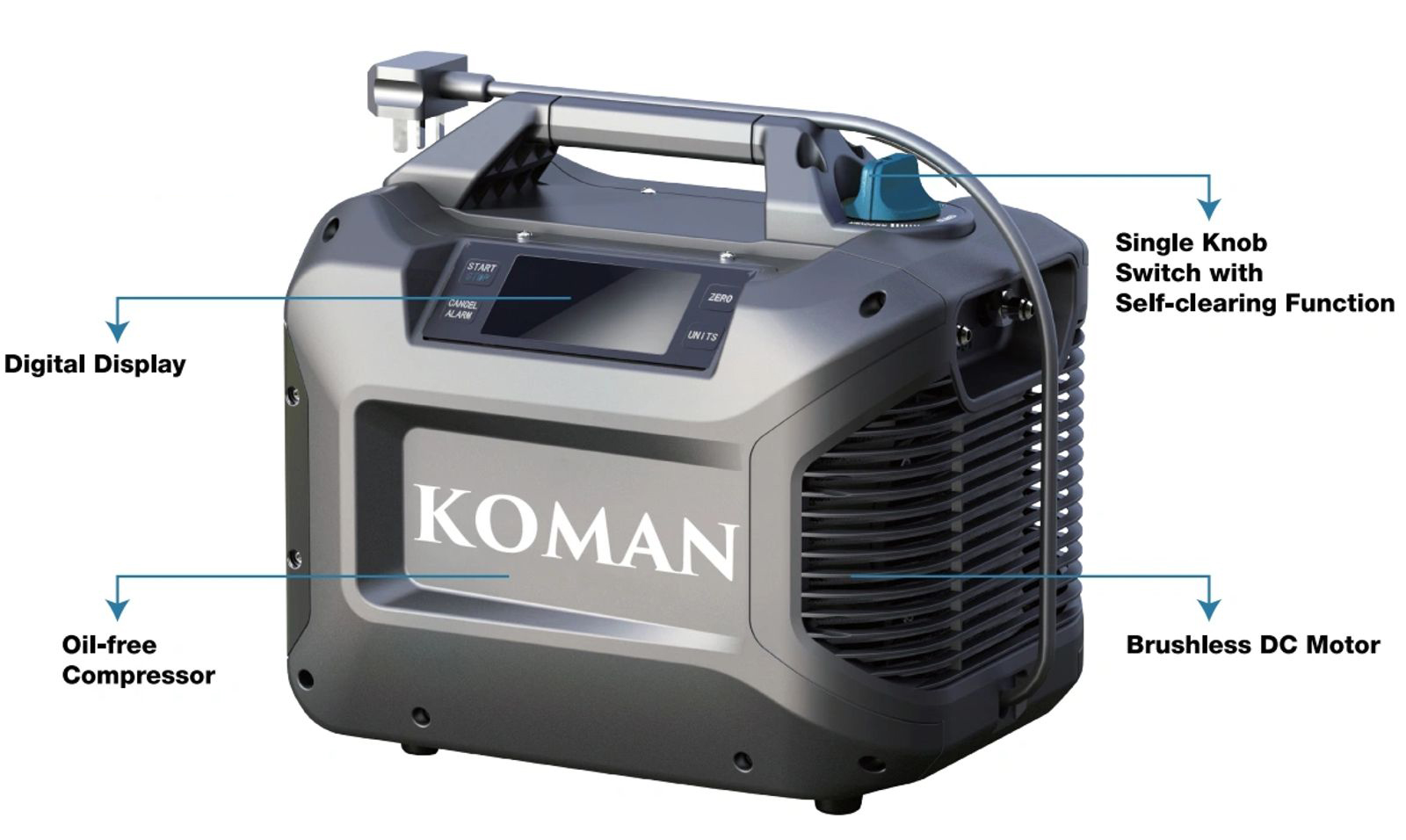

- Brushless DC Motor - Safe, Sparkless Design, Light Weight, Easy to Carry
- Digital Display - Easy and accurate reading of pressure values, Backlight for night use
- Built-in Pressure Sensor - Accurate measurement of pressure values, Overpressure protection (38kg)
- Double Cylinder Design - Quick Recovery, Compact Structure
- Oilless Compressor - Suitable for R32, R600 and all other refrigerants
- Purge - Prevent Mixing of Different Refrigerants
| Item No. | KM-520D |
|---|---|
| Suitable refrigerant gas | III series: R12, R134a, R401C, R406A, R500, 1234YF IV series: R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509 V series: R402A, R404A, R407A, R407B, R410A, R507, R32 |
| Cylinder quantity | 2 cylinder |
| Power | 220V~240V, 50/60Hz |
| Motor | 750W(1HP) |
| Speed of revolution | 2500 RPM |
| Electric current | 220V:6A |
| Compressor | No oil lubricate,Forced air cooling,Piston type |
| High pressure protection | 38.5bar / 3850KPa(558psi) |
| Operating temperature | 0℃ ~ 40℃ / 32 ~ 104℉ |
| Dimensions | 375 × 250 × 320 mm |
| Net weight | 10 kg |
| Refrigerant gas - R134a | Liquid: 2.40 kg/min |
| Refrigerant gas - R22 | Liquid: 2.70 kg/min |
| Refrigerant gas - R410A | Liquid: 3.50 kg/min |
| Push-pull mode - R134a | 7.50 kg/min |
| Push-pull mode - R22 | 8.50 kg/min |
| Push-pull mode - R410A | 9.50 kg/min |
