INTELLIGENT VACUUM PUMPS

KM-2BM

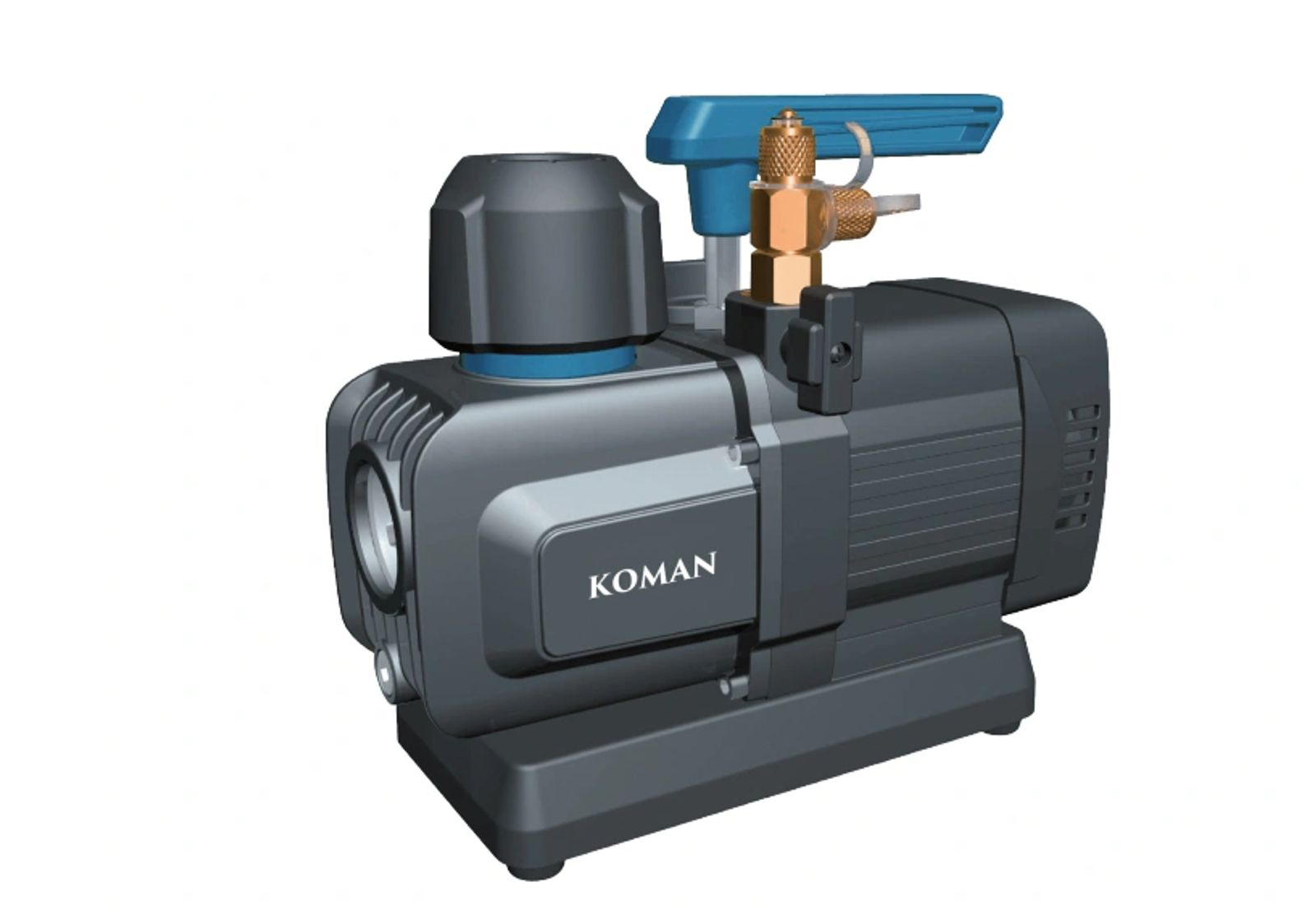

KM-2BM Intelligent Vacuum Pump
  • Sparkless brushless motor use for R1234YF, R290, R32 etc flammable refrigerants.
  • Portable and novel appearance.
  • Integrated cylinder, superior air impermeability.
KM-2BM Specifications
Item No.KM-2BMKM-2S
Flow Rate2.5 CFM
71 L/MIN		2.5 CFM
71 L/MIN
Pole No.Dual StagesSingle Stage
Power1/4 HP1/4 HP
Ultimate Vac.2x10⁻³ Pa2 Pa
Inlet Port1/4" & 3/8" flare1/4" & 3/8" flare
Oil Capacity240 ml300 ml
Dimension215.5x105x200mm215.5x105x200mm
Weight3.5 kgs3 kgs

KM-4BM

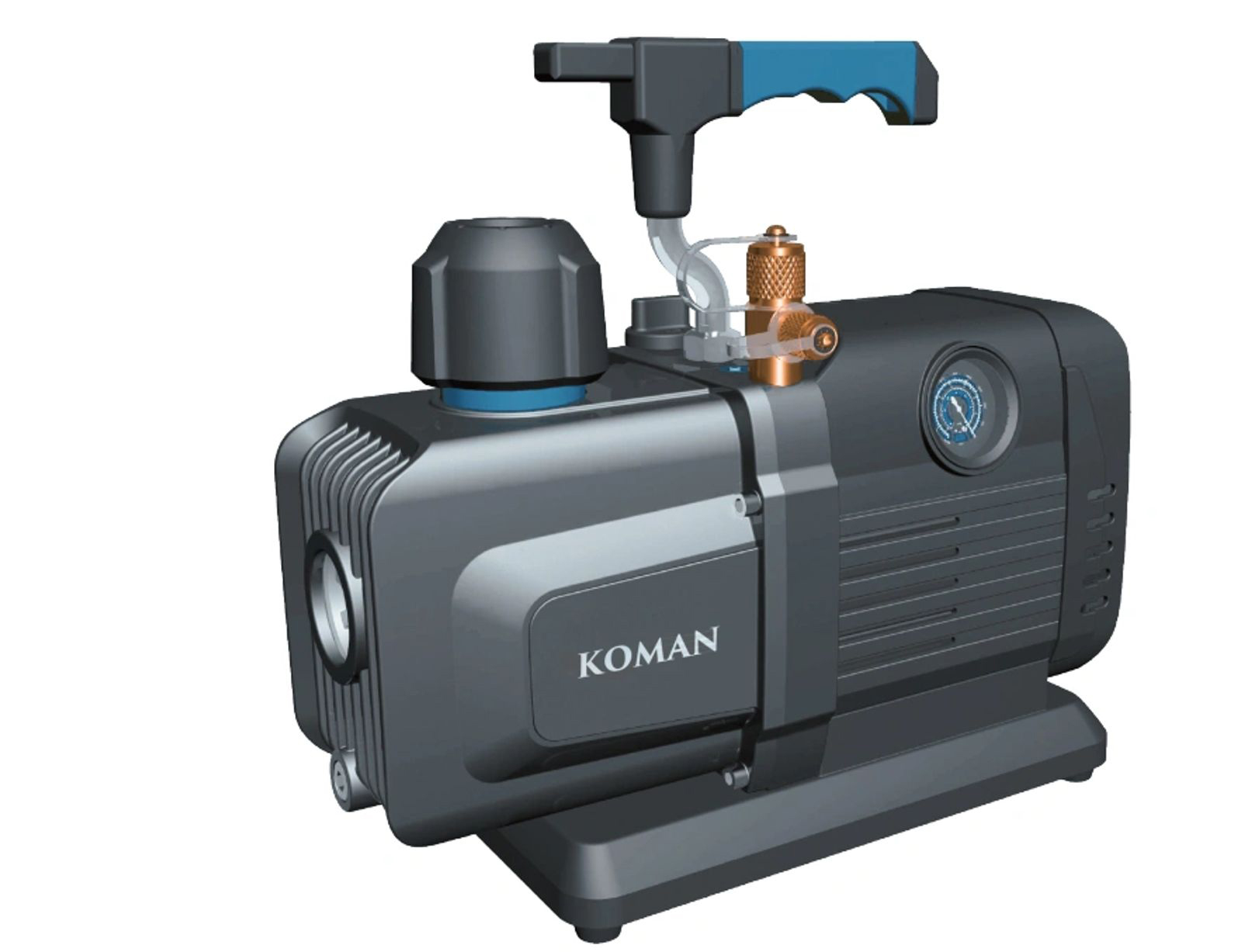

KM-4BM Intelligent Vacuum Pump
  • Sparkless brushless motor use for R1234YF, R290, R32 etc flammable refrigerants.
  • Portable and novel appearance.
  • Integrated cylinder, superior air impermeability.
KM-4BM Specifications
Item No.KM-4BMKM-4S
Flow Rate4.5 CFM
127 L/MIN		4.5 CFM
127 L/MIN
Pole No.Dual StagesSingle Stage
Power1/4 HP1/4 HP
Ultimate Vac.2x10⁻³ Pa2 Pa
Inlet Port1/4" & 3/8" flare1/4" & 3/8" flare
Oil Capacity720 ml890 ml
Dimension290x128x276mm290x128x276mm
Weight5.3 kgs4.7 kgs

KM-8BM

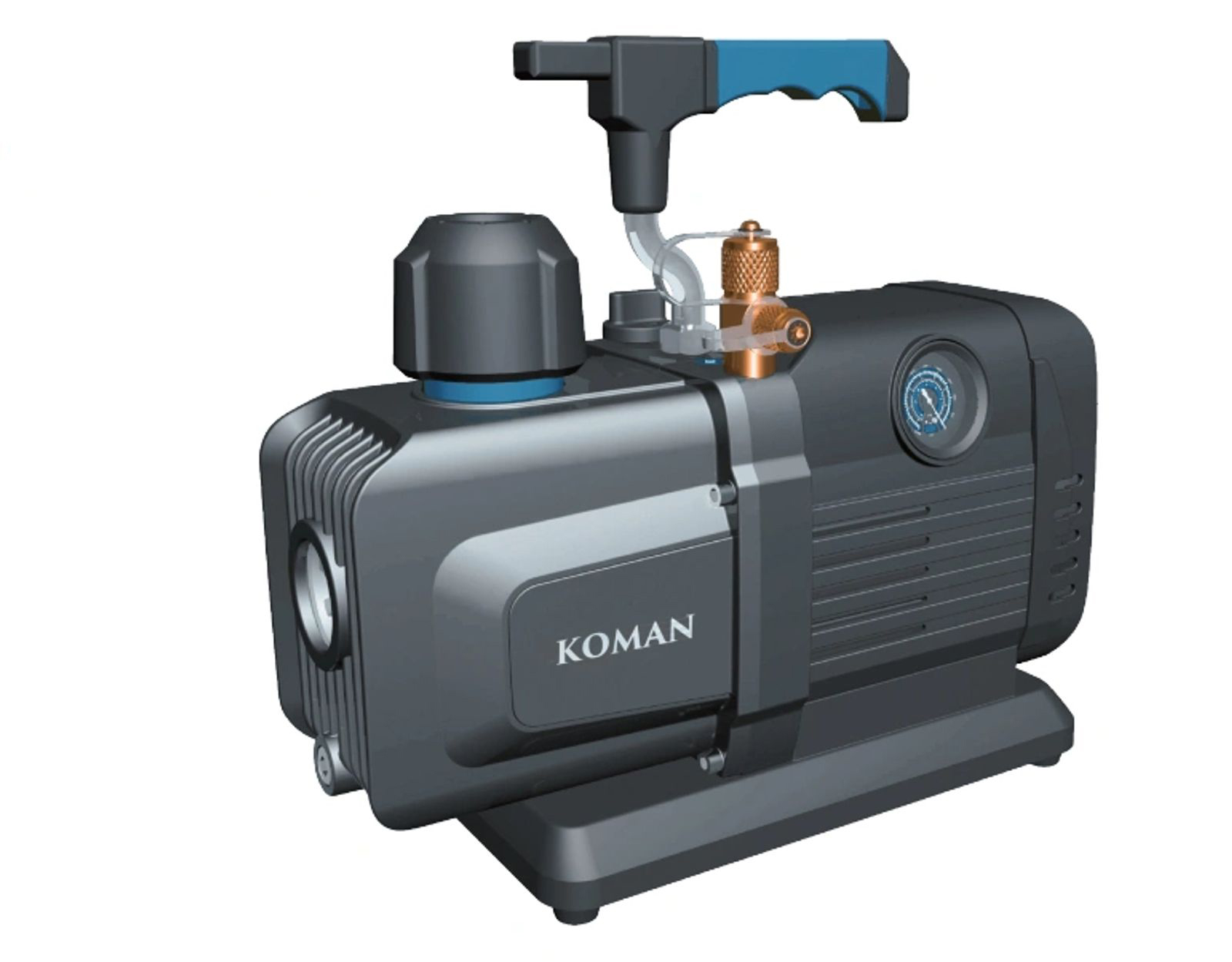

KM-8BM Intelligent Vacuum Pump
  • Sparkless brushless motor use for R1234YF, R290, R32 etc flammable refrigerants.
  • Portable and novel appearance.
  • Integrated cylinder, superior air impermeability.
KM-8BM Specifications
Item No.KM-8BMKM-8S
Flow Rate8.5 CFM
241 L/MIN		8.5 CFM
241 L/MIN
Pole No.Dual StagesSingle Stage
Power1/3 HP1/3 HP
Ultimate Vac.2x10⁻³ Pa2 Pa
Inlet Port1/4" & 3/8" flare1/4" & 3/8" flare
Oil Capacity570 ml600 ml
Dimension349x139x333mm349x139x333mm
Weight11 kgs10.5 kgs

LITHIUM VACUUM PUMPS

KM-2BMC KM-4BMC

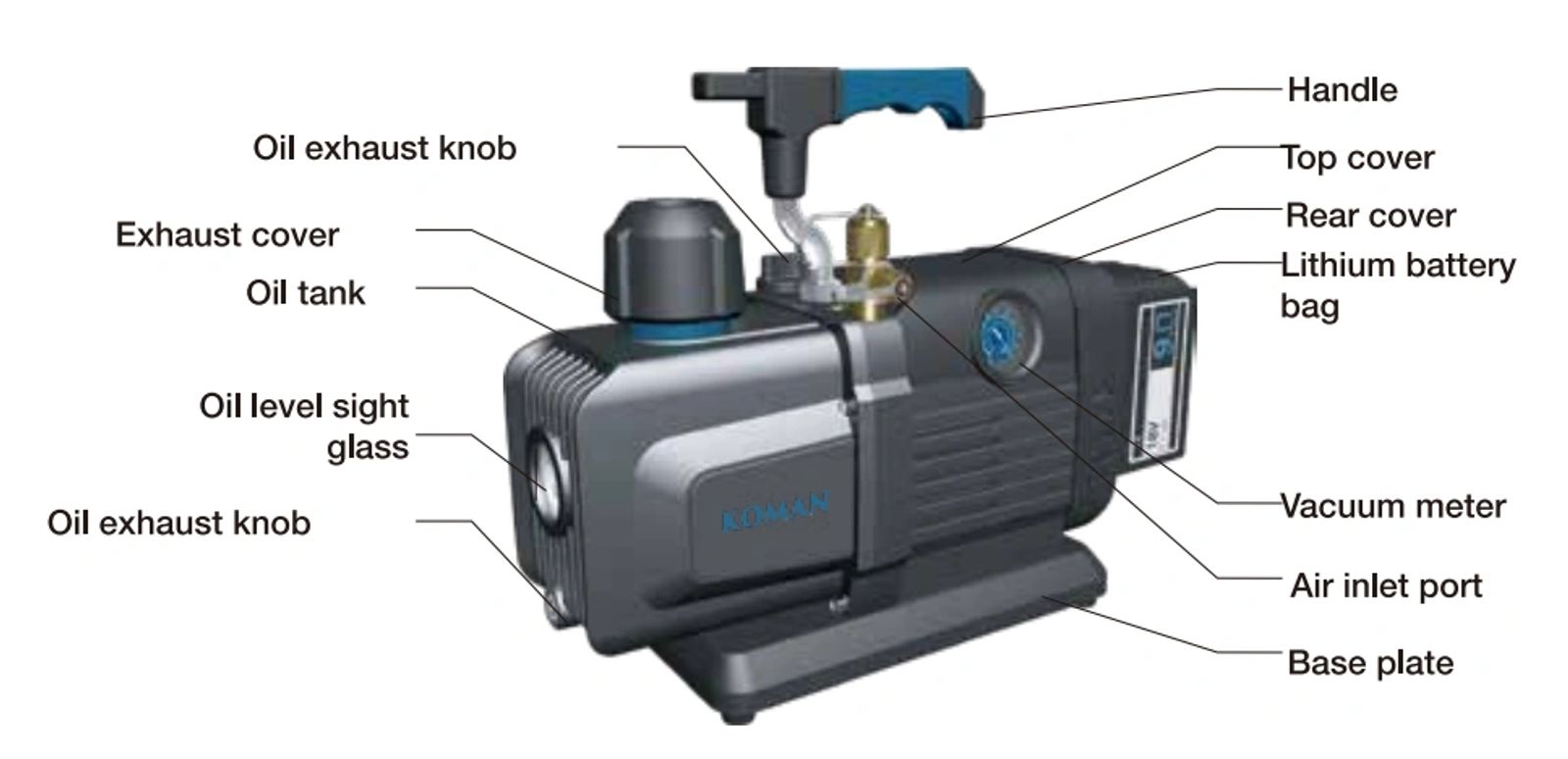

KM-2BMC KM-4BMC Lithium Vacuum Pump with labeled parts
TECHNICAL PARAMETER
ModelKM-2BMCKM-4BMC
CFMDual stagesDual stages
Power18V lithium battery18V lithium battery
Battery Capacity5.0 AH9.0 AH
Flow rate5.4m³/h9m³/h
Ultimate pressure2Pa2Pa
Oil capacity240ml720ml
Weight(exclude battery)3.3kg5.1kg
Inlet port1/4" Flare1/4" Flare & 3/8"Flare

APPLICATION RANGE

Single, dual rechargeable vacuum pump, adopt brushless motor,lithium battery as power, small size, quick pumping, carry convenient. Use on occasions without AC. This product can be used in the vacuumoperation of R32,R134,R410 and other chillers and systems.

TECHNICAL PARAMETERS OF THE CHARGER

ModelParameter
AC input100-240V~
Frequency50/60Hz
Power200W
Output voltage21V
Output current5A
Weight0.64kg
Size189x155x81mm
